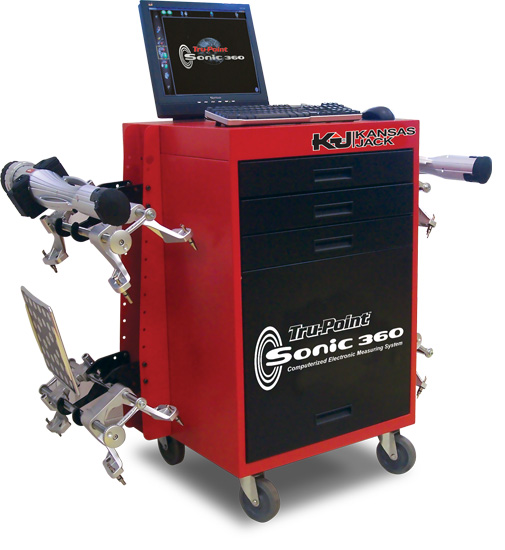

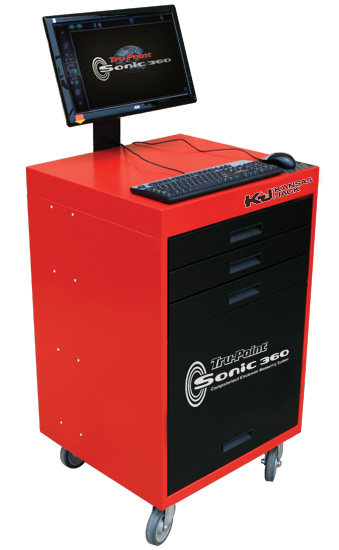

The Tru-Point Sonic 360 is a computerized electronic measuring system that relies on ultrasound technology for dramatic productivity improvements and the industry’s best speed and accuracy. The Tru-Point Sonic 360 provides “measure-as-you-pull” functionality that virtually eliminates costly rework.
The Tru-Point Sonic 360 will enable you to:
- Get accurate measurements the first time, every time.
- Monitor up to 12 live measurement points and see results as you pull.
- Save time and money by avoiding re-work and stopping to fix hidden issues.
Click on one of the section titles to learn more about the Tru-Point Sonic 360 Frame Measuring System.
Award-Winning Ultrasound Technology
The Tru-Point Sonic 360 uses ultrasound technology to collect measurements and track your repairs. Emitters on the probes are attached to the vehicle at specific points and send ultrasonic signals that are received by high-frequency microphones located in the light-weight extruded aluminum beam. The results are compared to manufacturer specs and any problem areas are identified automatically. This leaves the operator free to concentrate on straightening, not on how to collect measurements.
How the Tru-Point Sonic 360 Works
- The Tru-Point Sonic 360 relies on microphones located in the beam and ultrasound emitter probes placed at pre-defined points on the vehicle
- The beam is made of light-weight aluminum, goes anywhere, and is light enough for one technician to handle
- The Tru-Point Sonic 360 does not require a level rack, level car or level beam
- The technician has the option of viewing digital images of each attachment point and following the step-by-step guides for connecting accessories and probes
- The probes can be placed closely together and still maintain accurate readings - a feature not found on competitive systems
- The Tru-Point Sonic 360 console provides a live depiction of these control points and their variance from manufacturer specs with vivid, easy-to-read graphics
- During repair, these measurements are displayed as they change, allowing for extremely accurate, "right the first time" pulls and eliminating the back-and-forth process associated with competitive models
- Upper-body and under-hood measurements are obtained with ease using the included accessory, eliminating the need for any mechanical measuring devices or bridges
- An optional, second upper-body measuring accessory further improves job times
- Before and after-repair measurements are captured for reporting purposes
- PDF’s can be saved and e-mailed to the customer’s insurance company
Live Measurement Display Options
Live measurements enable real time feedback of your pulls, saving time and putting more money in your pocket. Three available display options of these measurements cover every technician’s preference. The XYZ coordinate option provides easy-to-read distance and direction. Graphical displays of XYZ coordinates and of net pull angles are also available.
Attachment Points View
A technician favorite that improves productivity, view line art or actual vehicle images which display attachment points while the technician moves through the attachment process. The all-new magnifying glass function allows the technician to zoom in on attachment points for an increased visual interpretation and make informative decision in the repair process.
Maintain consistency with OEM specs, view Technical Service Bulletins and access vehicle repair information from OEM’s worldwide via the Tru-Point Sonic.
Customize reports to meet your shop and insurance companies requirements. View and print a quick comparison of the vehicle damage versus its repair, add vehicle damage pictures and repair notes and build up a damage or repair unit estimate.
Poyurethane foam inserts with embossed accessory identifiers for storage location of accessory
Vehicle Dimension Data
Access our Matrix electronic vehicle dimensional point-to-point specifications of both upperbody and openings.
Optional VIN code Reader
(EAK0289J86A) The VIN Scanner allows the technician to scan the Vehicle Identification Number and automatically input it into the Tru-Point Sonic 360, saving time & eliminating the possibility of operator error.
Increased Profit Potential
Maximize your profit potential by using the Vehicle Pre-Delivery Checklist to offer services beyond collision repair.
Point-to-Point Measurements, On-Screen Job Note Pad, Embedded and Context-Sensitive Help Files, Multi-Layered Vehicle Graphics (Allows peeling and see-through functions,) and On-Board Log (Tracks system maintenance, inventory audits.)
Premium Model (EECR907B):
- 12 Control Point - Live Active Measuring
- 360° Underhood Measuring Accessory (2 MCP’s)
- Premium Tool Box Cabinet with Premium Chrome Spoke Casters with Brakes
- Large, Wide Screen 27" LCD Display
- Premium Beam Storage and Mobility Cart
- Frame Rack Measuring Application Brackets
- Premium Cabinet and Beam Cover Kit
- VIN Code Reader
- Deluxe Tram Gauge
Deluxe User Interface with the following productivity features:
- VIN Decoding
- Vehicle Image Database
- Point to Point Measuring
- Upper Body Opening Specifications
- Intuivie Help
- Two Year Warranty
- Two Year Vehicle Specifications Subscription with Technical Support Hotline
Standard Model (EECR907C):
- 8 Control Point - Live Active Measuring
- 180° Underhood Measuring Accessory (1 MCP)
- Premium Tool Box Cabinet with Standard Casters with Brakes
- Wide Screen 19" LCD Display
- Beam Wall Storage Brackets
- Frame Rack Measuring Application Brackets
- Standard Cabinet and Beam Cover Kit
Standard fundamental Windows® program scheme for fast reliable results
- One Year Warranty
- One Year Vehicle Specifications Subscription with Technical Support Hotline
